Toyota

JDM Toyota 3SGTE Engine – Used Gen-3 3SGTE

$2,100.00

Free shipping on orders over $4,000!

    Available payment method
    SKU: PFM-616 Category: Tags: , , , , , , , , , , , , , , , , , , , , ,

    Description

     JDM Toyota 3SGTE Engine For Sale



    JDM Toyota 3SGTE Engine For Sale.The incredibly rigid and bullet-proof 3SGTE motor was Toyota’s very first 2-liter, 4 cylinders turbocharged performance engine used to power the Toyota Celica GT-4 and Toyota MR2 Turbo models between 1986 to 1999. This is a complete motor set, with approximately 45,739 miles covered. Ideal for your Toyota swap projects; Celica, MR2, Caldina amongst others.

    TOYOTA CALDINA GT4 N-EDITION ST246W Gen-3 3SGTE ENGINE For Sale With ECU & TRANSMISSION
    Latest generation 3SGTE engine for sale from JDM 4WD Caldina ST246W. Includes loom, ECU, Turbo, Intercooler, Manual Transmission, and some ancillaries. proper for transplant or conversion. Good swap to replace earlier generation 3SGTE from Celica GT4 ST205 etc.



    Parts Included In The JDM Unit

    • Complete Engine (Head & Block)
    • Intake Manifold
    • Exhaust Manifold
    • Fuel Rails
    • Corresponding Alternator
    • Power Steering
    • Sensors
    • Wiring Harness
    • Oil Pan
    • Turbo
    • ECU

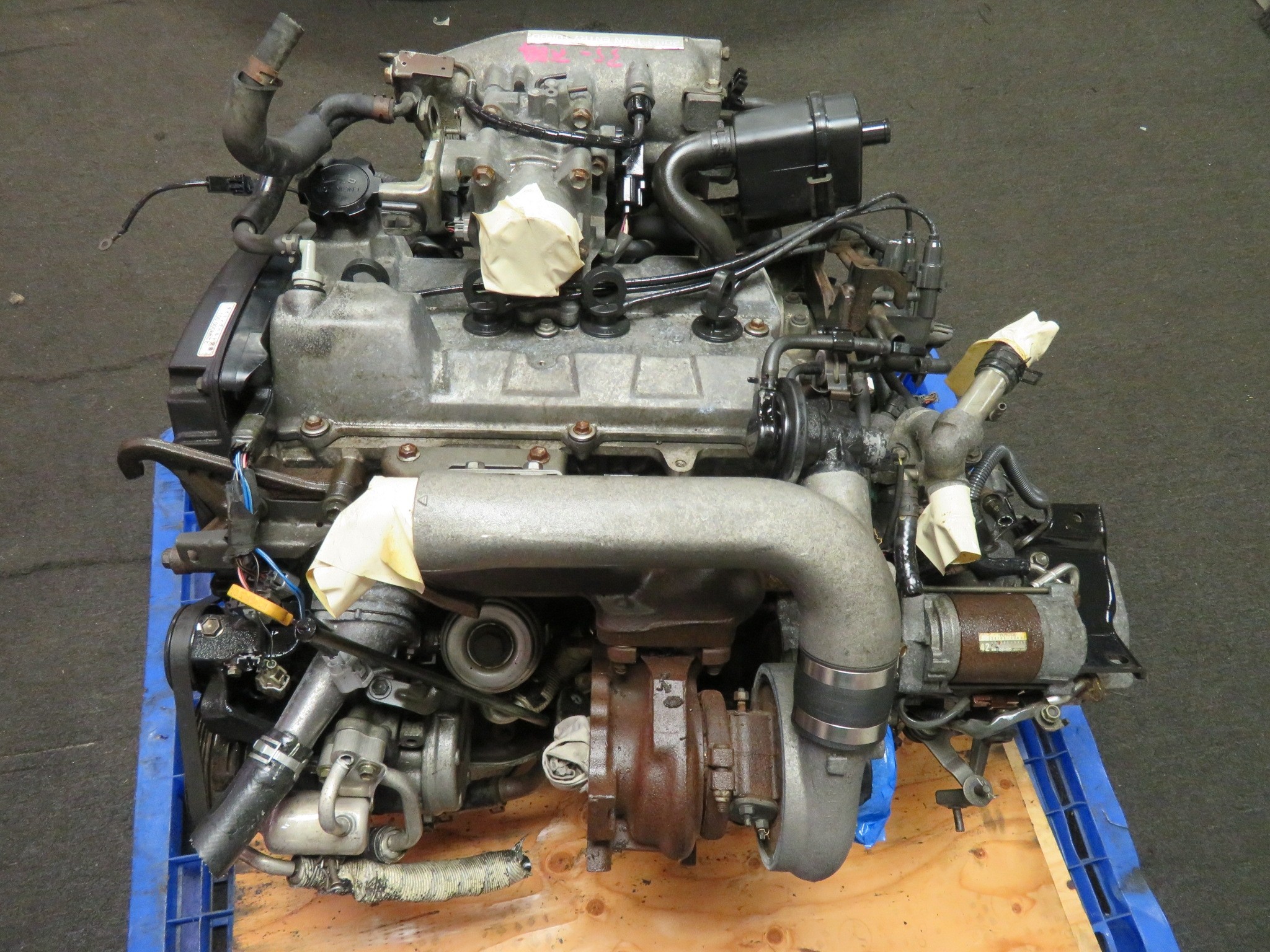

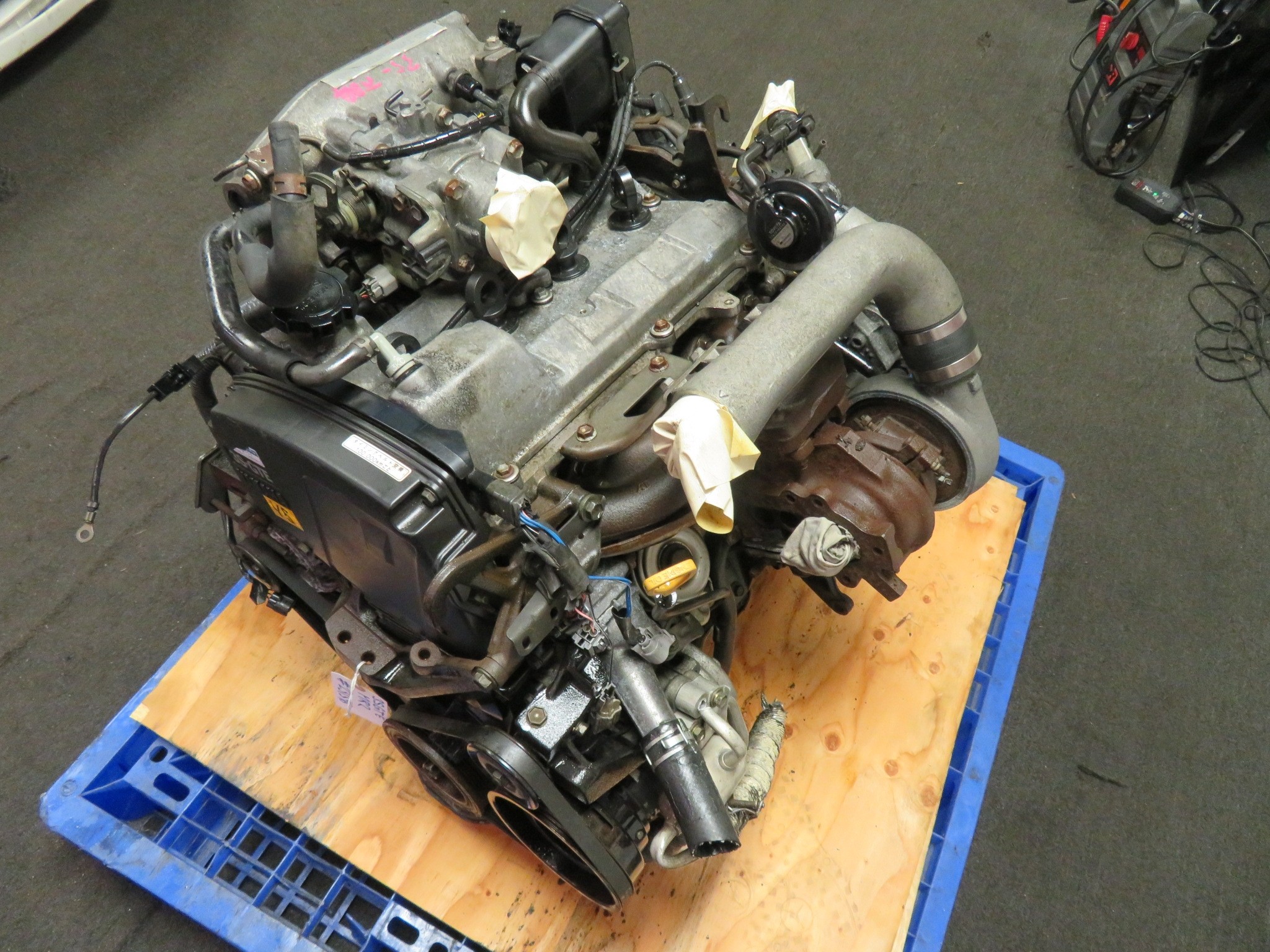

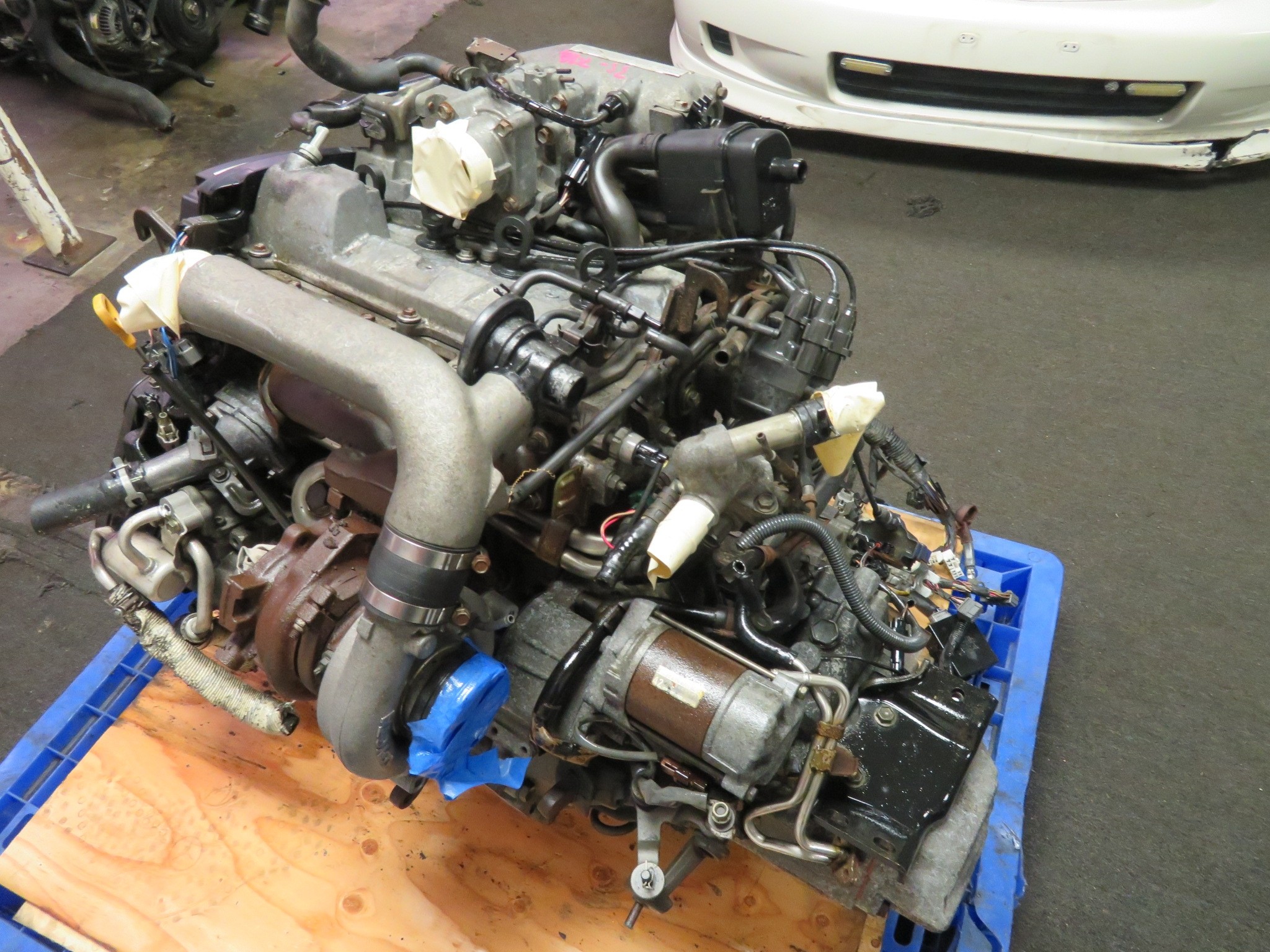

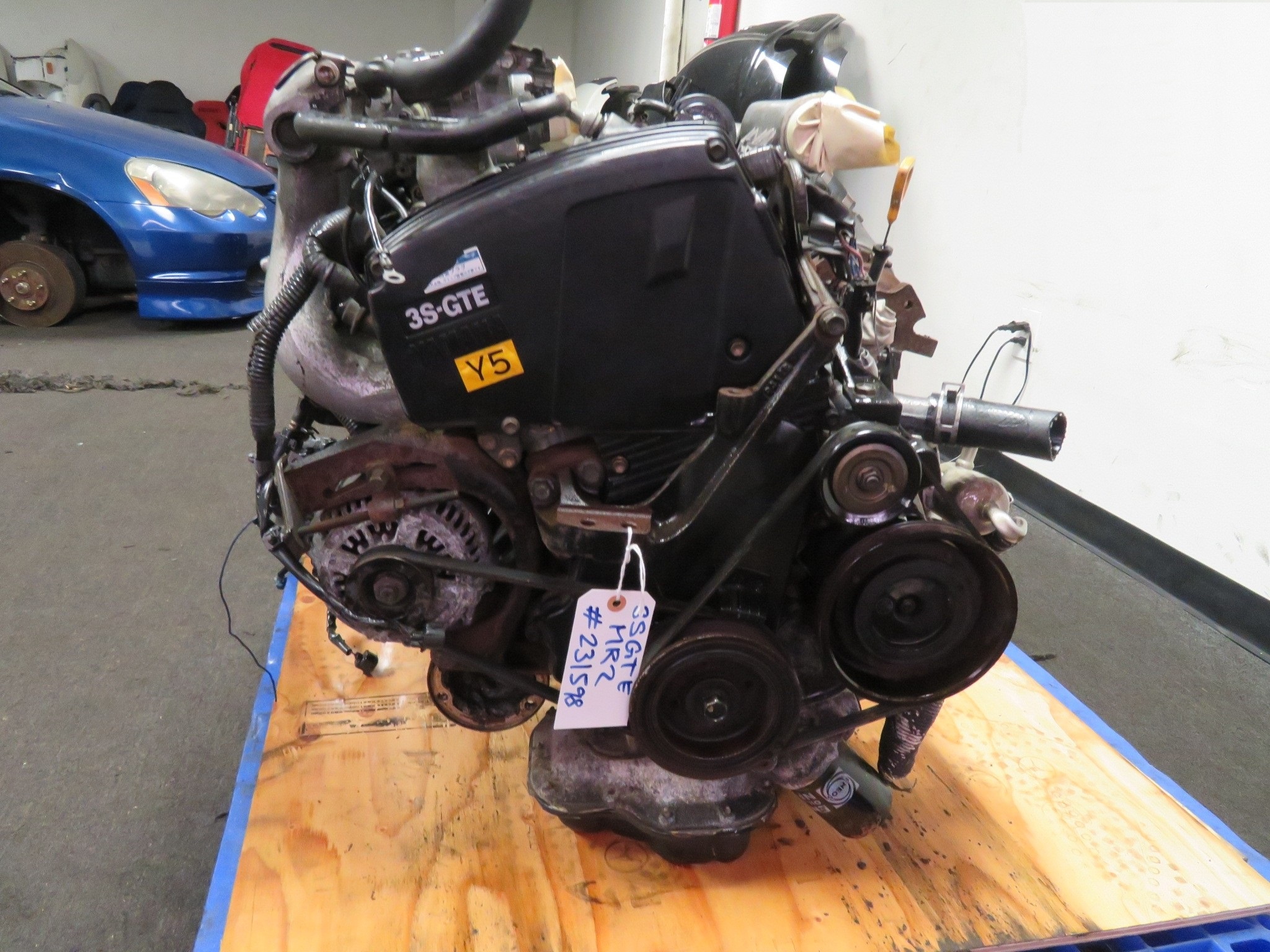

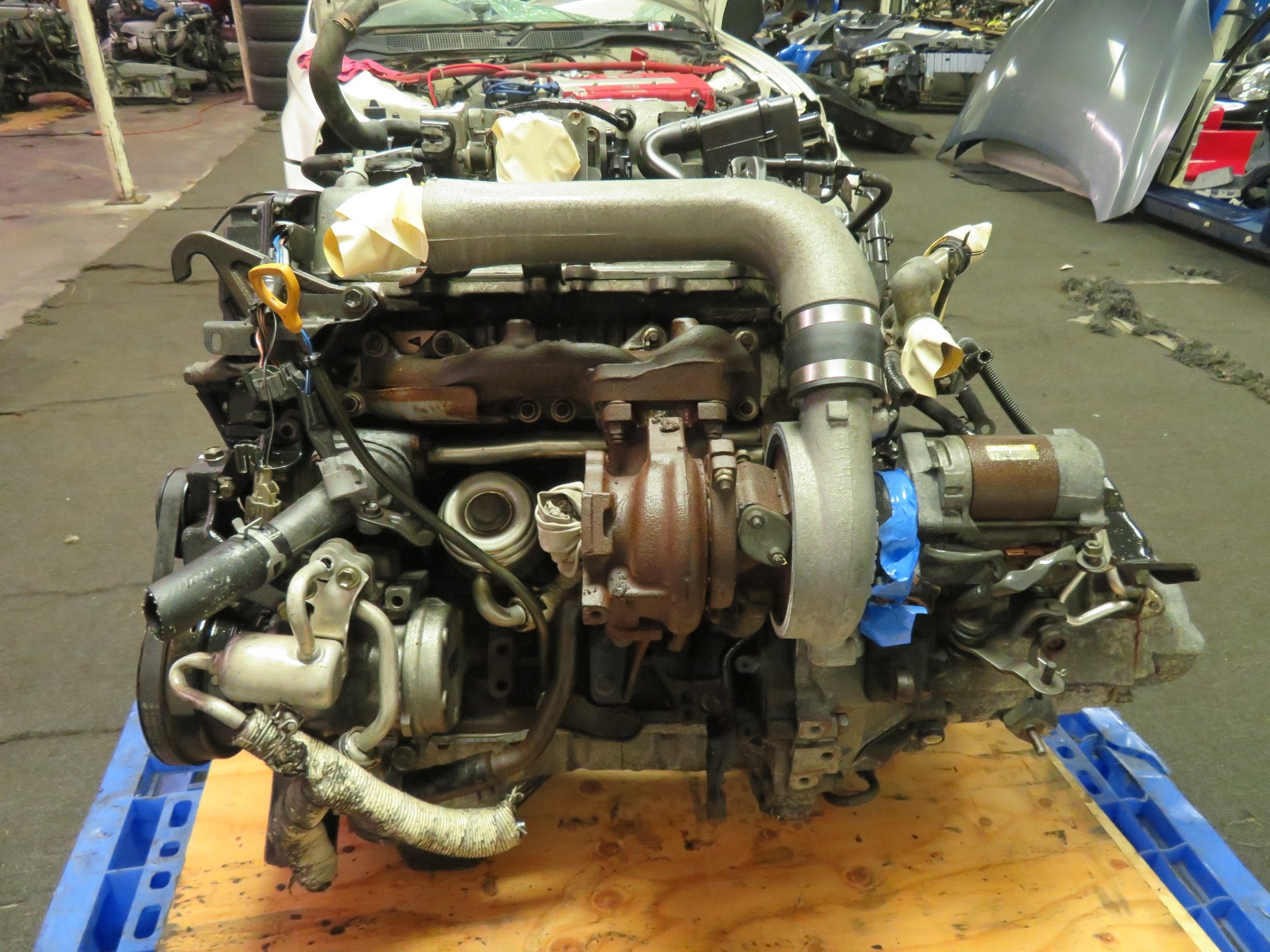

    *What you see on the image is exactly what you get.



    Toyota 3SGTE Reference Specs

    Manufacturer  Kamigo Plant
    Toyota Motor Manufacturing
    Also called Toyota 3S
    Initial Production 1987-2007
    Cylinder block alloy Cast-iron
    Configuration Straight-4
    Valvetrain DOHC
    4 valves per cylinder
    Piston stroke, mm (inch) 86 (3.39)
    Cylinder bore, mm (inch) 86 (3.39)
    Compression ratio 8.5 (3S-GTE Gen. 1/Gen. 3)
    8.8 (3S-GTE Gen. 2)
    9 (3S-GTE Gen. 4)
    9.2 (3S-GE Gen. 1)
    9.8 (3S-FC, 3S-FE, 3S-FSE)
    10 (3S-GE Gen. 2)
    10.3 (3S-GE Gen. 3)
    11.1 (3S-GE Gen. 4)
    11.5 (3S-GE Gen. 5)
    Displacement 1998 cc (121.9 cu in)
    Power output 82 kW (111 HP) at 5,600 rpm
    85 kW (115 HP) at 5,600 rpm
    90 kW (122 HP) at 5,600 rpm
    94 kW (128 HP) at 6,000 rpm
    96 kW (130 HP) at 6,000 rpm
    103 kW (140 HP) at 6,200 rpm
    110 kW (150 HP) at 6,000 rpm
    115 kW (156 HP) at 6,600 rpm
    132 kW (179 HP) at 7,000 rpm
    136 kW (185 HP) at 6,000 rpm
    140 kW (190 HP) at 7,000 rpm
    147 kW (200 HP) at 7,000 rpm
    156 kW (212 HP) at 7,600 rpm
    165 kW (225 HP) at 6,000 rpm
    180 kW (245 HP) at 6,000 rpm
    191 kW (260 HP) at 6,200 rpm
    Torque output 166 Nm (122 lb·ft) at 3,200 rpm
    162 Nm (132 lb·ft) at 4,400 rpm
    169 Nm (125 lb·ft) at 4,400 rpm
    178 Nm (131 lb·ft) at 4,400 rpm
    178 Nm (131 lb·ft) at 4,400 rpm
    175 Nm (129 lb·ft) at 4,800 rpm
    192 Nm (142 lb·ft) at 4,000 rpm
    186 Nm (137 lb·ft) at 4,800 rpm
    192 Nm (142 lb·ft) at 4,800 rpm
    250 Nm (184 lb·ft) at 3,600 rpm
    210 Nm (155 lb·ft) at 6,000 rpm
    210 Nm (155 lb·ft) at 6,000 rpm
    220 Nm (162 lb·ft) at 6,400 rpm
    304 Nm (224 lb·ft) at 3,200 rpm
    304 Nm (224 lb·ft) at 4,000 rpm
    324 Nm (239 lb·ft) at 4,400 rpm
    Redline –
    HP per liter 55.6
    57.6
    61.1
    64.1
    65.1
    70.1
    75.1
    78.1
    89.6
    92.6
    95.1
    100.1
    106.1
    112.6
    122.6
    130.1
    Fuel type Gasoline
    Weight, kg (lbs) 143  (315) – 3SGE engine
    Fuel consumption, L/100 km (mpg)
    -City
    -Highway
    -Combined    		 for Celica GT Turbo
    13.0 (18.1)
    8.0 (29.4)
    9.5 (24.8)
    Turbocharger  Naturally aspirated
    Toyota CT26
    Toyota CT20B
    Oil consumption, L/1000 km
    (qt. per miles)    		 up to 1.0
    (1 qt. per 750 miles)
    Recommended engine oil 5W-30
    5W-40
    5W-50
    10W-30
    10W-40
    10W-50
    10W-60
    15W-40
    15W-50
    20W-20
    Engine oil capacity, L (qt.) 3.9 (4.1) — 3S-GTE 1 Gen.
    3.9 (4.1) — 3S-FE/3S-GE 2 Gen
    4.2 (4.4) — 3S-GTE 2 Gen.
    4.5 (4.75) — 3S-GTE 3 Gen./4 Gen./5 Gen.
    4.5 (4.75) — 3S-GE 3 Gen./4 Gen.
    5.1 (5.4) – 3S-GE 5 Gen.
    Oil change interval, km (miles) 5,000-10,000
    (3,000-6,000)
    Normal engine operating temperature, °C (F) ~95 (203)
    Engine lifespan, km (miles)
    -Official information
    -Real    		 –
    300,000+ (185,000+)
    Tuning, HP
    -Max HP
    -No life span loss    		 350+
    <300
    The engine is installed in Toyota Avensis
    Toyota Caldina
    Toyota Camry
    Toyota Carina
    Toyota Carina E
    Toyota Celica
    Toyota Corona
    Toyota RAV4
    Toyota Vista
    Lexus IS200 / Toyota Altezza
    Toyota Ipsum
    Toyota MR2
    Toyota Nadia
    Toyota Town Ace
    Holden Apollo
