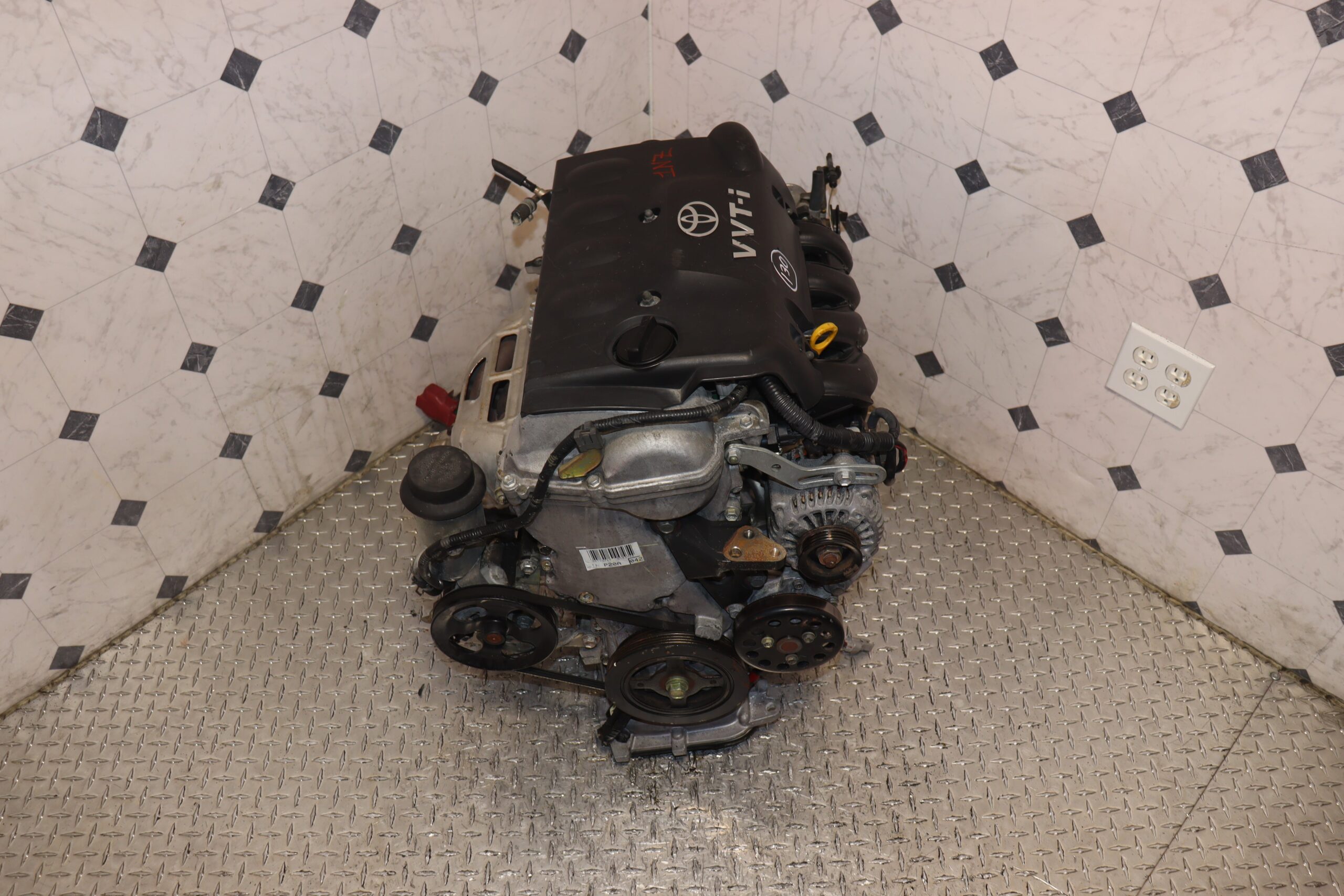

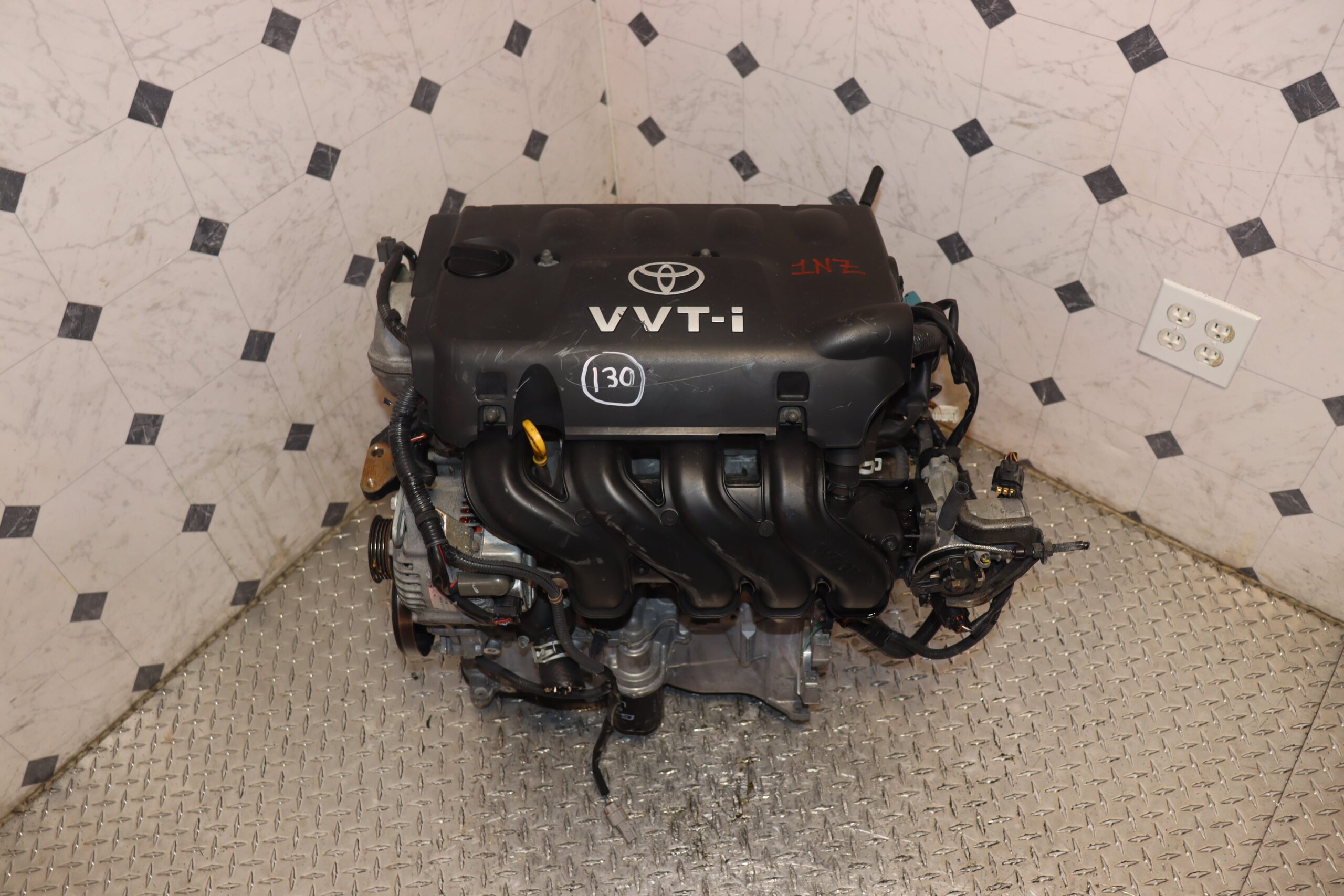

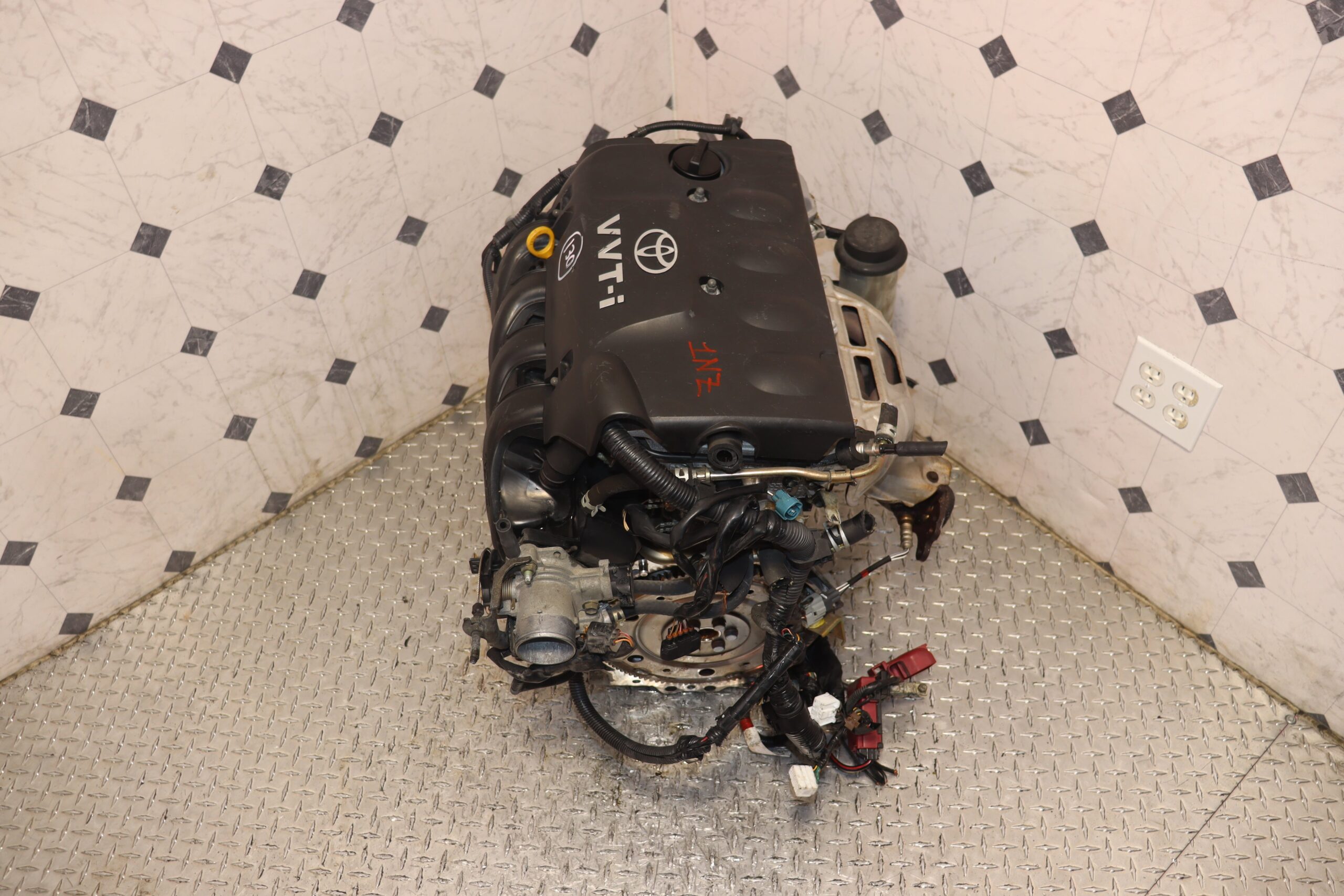

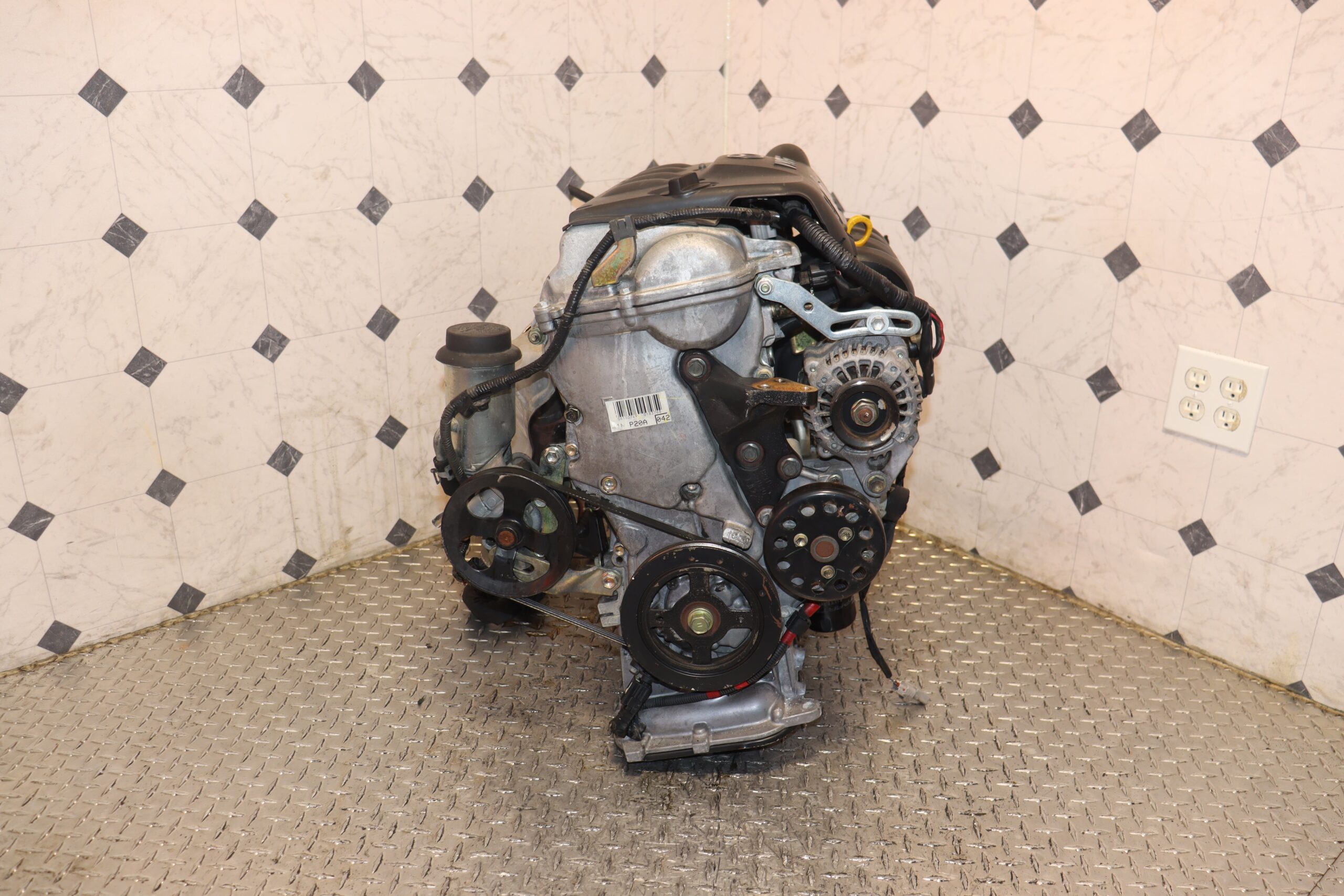

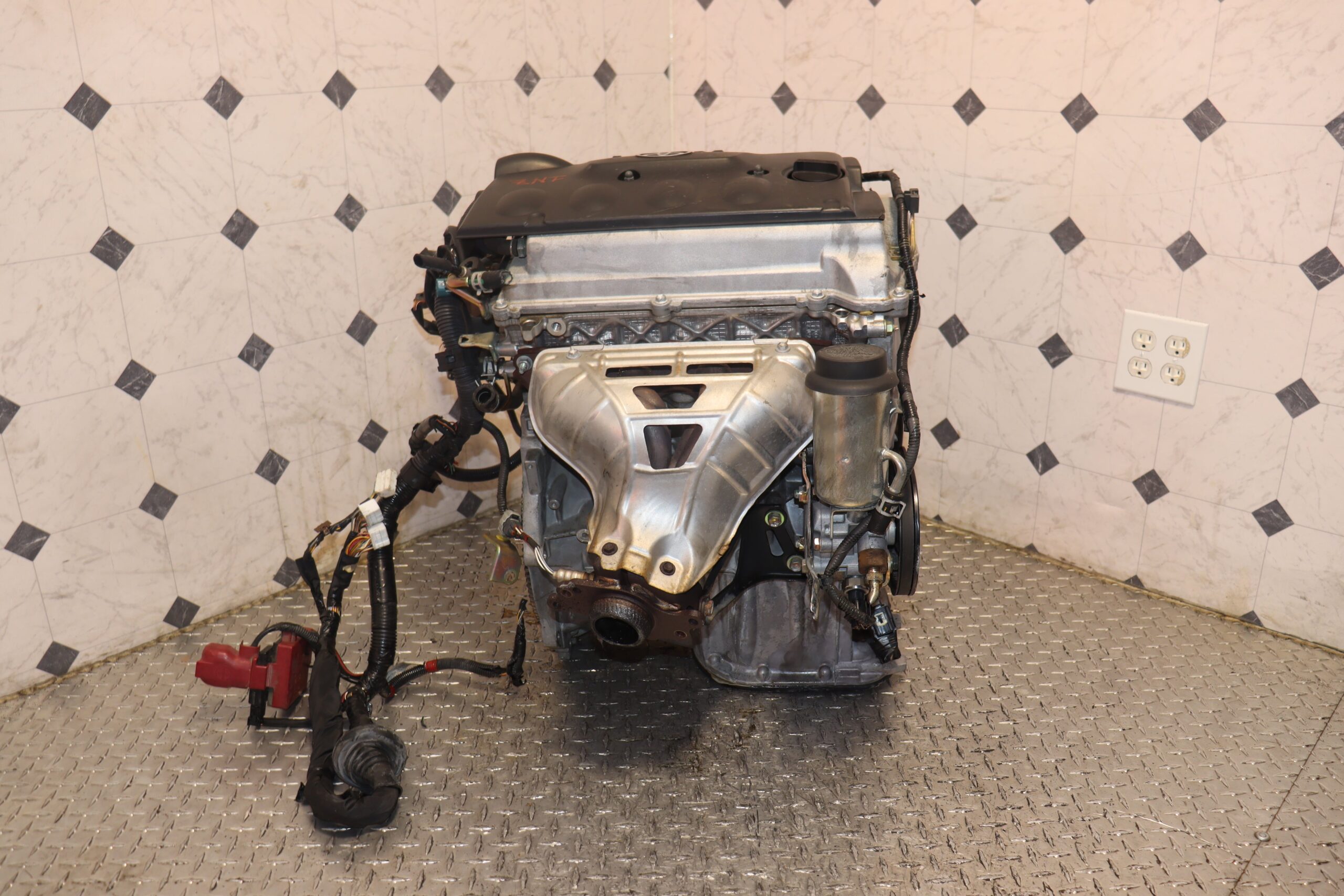

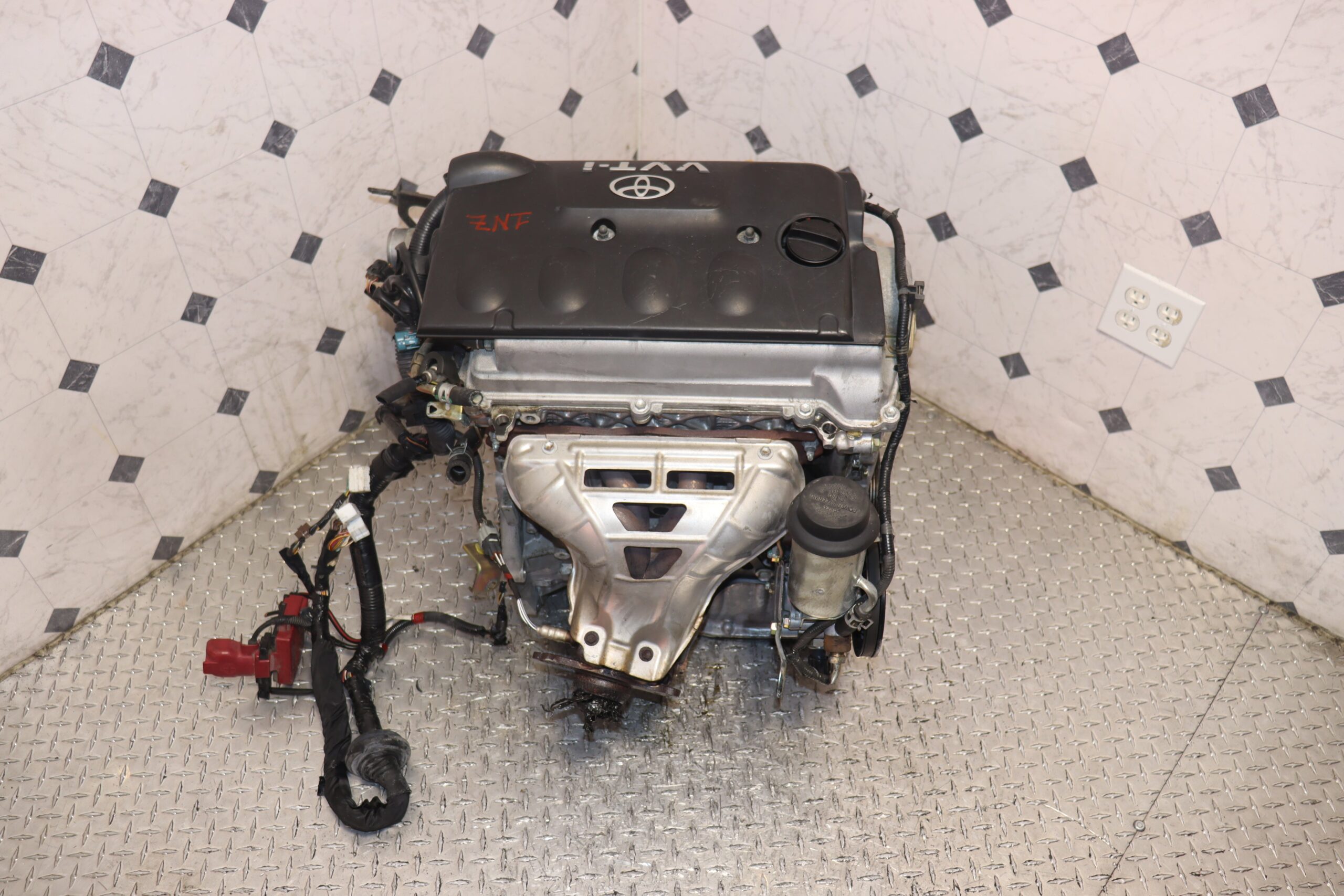

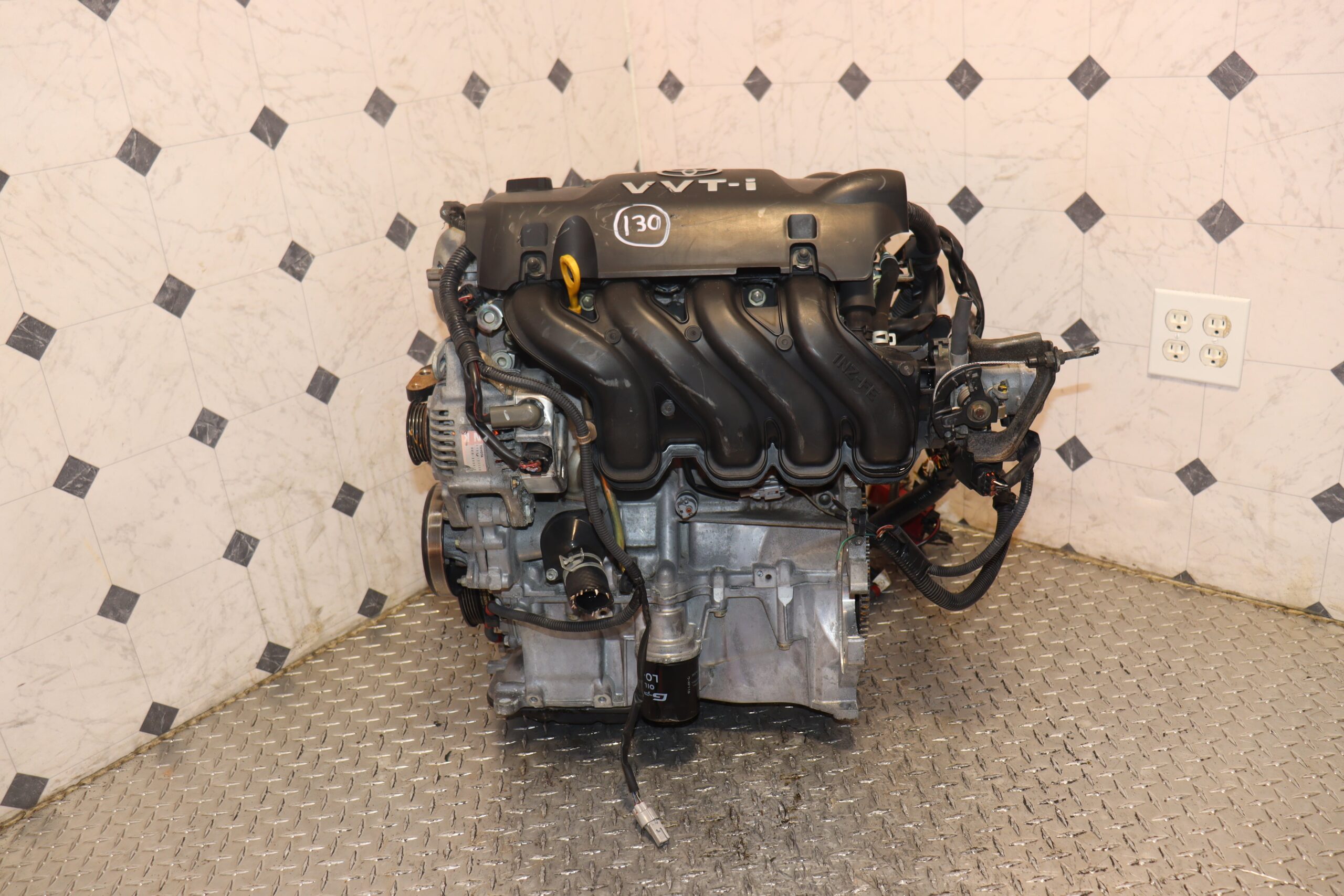

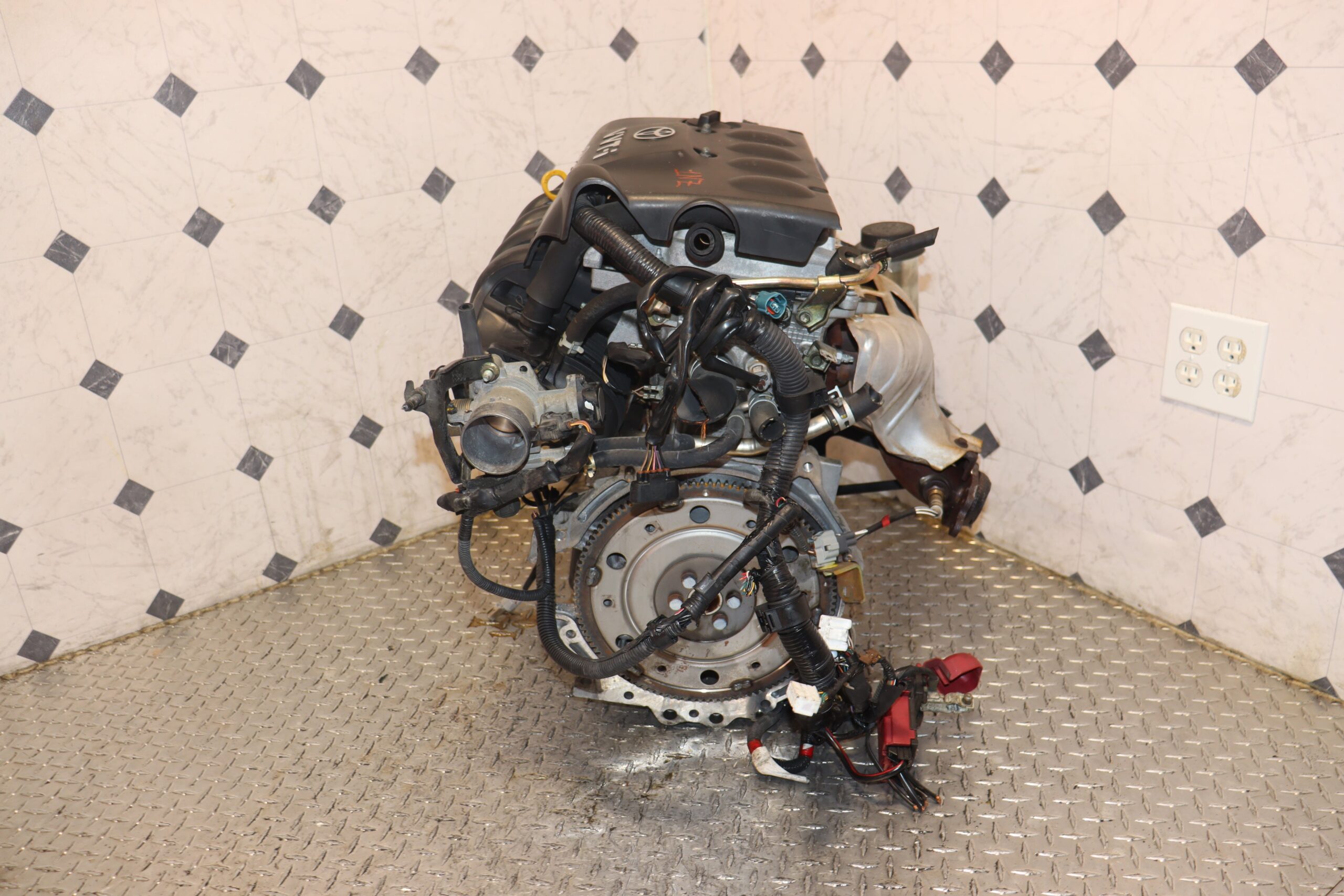

Name: 2004 2005 2006 Scion xB 1.5L DOHC VVTi Engine JDM 1NZ-FE
SKU: JDM-8088987992243
Price: 779.35 USD
Availability: InStock

Description

Feature	Specification
Engine Code	1NZ-FE
Displacement	1.5 Liters (1497 cc)
Cylinder Layout	Inline 4-Cylinder
Valvetrain	DOHC, 16-Valve, VVT-i
Horsepower	108 HP @ 6,000 RPM
Torque	105 lb-ft @ 4,200 RPM
Fuel System	Multi-Port Electronic Fuel Injection (EFI)
Timing	Maintenance-free Timing Chain

Vehicle Fitments

This JDM 1NZ-FE is a direct long block replacement for the following USDM models:

2004-2006 Scion xB (1.5L)
Installation & Technical Notes

To ensure a “installation” installation and keep your vehicle emissions-compliant, please follow these expert notes:
- Long Block Swap: This engine is sold as a JDM Long Block (Head and Block). You must transfer your original USDM intake manifold, exhaust manifold, sensors, and wiring harness from your old engine.
- VVT-i Solenoid: While the JDM engine includes a VVT-i solenoid, we recommend inspecting yours and using the one that matches your original wiring plug.
- Maintenance Items: For the best results and support reliable operation, replace the following prior to installation:
  - Water Pump: A fresh OEM-spec pump ensures cooling reliability.
  - Spark Plugs: Use NGK Iridium or Denso K16R-U11.
  - Front & Rear Main Seals: It is significantly easier to replace these while the engine is out.
- Oil Recommendation: Use high-quality 5W-30 synthetic oil and a genuine Toyota (90915-YZZF2) oil filter.
- Non-EGR Units: Note that JDM engines often do not have EGR ports. By using your USDM intake and exhaust components, you will maintain factory emissions standards.
