Performance Automatic Super Comp Transmissions PA45102M-46

Description

Overview

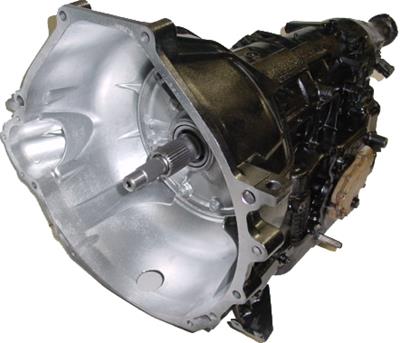

Performance Automatic Super Comp Transmissions PA45102M-46

Brand: Performance Automatic
Manufacturer’s Part Number: PA45102M-46
Part Type: Automatic Transmissions
Product Line: Performance Automatic Super Comp Transmissions
Summit Racing Part Number: PMA-PA45102M-46
UPC: 887753175489
Number of Gears: 4
Bellhousing Bolt Pattern Manufacturer: Ford
Transmission Shift Pattern: Forward
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 950
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: Yes
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Tailshaft Length (in.): 10.000 in.
Yoke Style: Slip-on
Input Spline Quantity: 35
First Gear Ratio (Automatic Transmissions): 2.46
Clutch Hub: Aluminum
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
Remanufactured: Yes
Quantity: Sold individually

---

Performance Automatic Super Comp Transmissions

Overview

The Performance Automatic Super Comp Transmission PA45102M-46 is built for serious racers who demand maximum strength, precision, and repeatable performance. Developed and tested through multiple rounds of competition, this transmission is engineered to handle extreme horsepower while delivering consistent results. As a result, it provides the reliability needed for both drag racing and high-performance builds.

Performance & Durability

In addition, each unit starts with a carefully selected core and is upgraded with racing clutches, premium bands, and a hardened input shaft. These enhancements improve durability and ensure the transmission can withstand high-stress conditions. Because of this, drivers benefit from firm, accurate shifts and improved overall drivetrain efficiency. The deep aluminum pan also helps manage heat, extending the life of internal components.

Advanced Features

Moreover, the inclusion of a Performance Automatic trans-brake valve body allows for quicker launches and better control at the starting line. The full manual valve body gives drivers complete control over gear selection, making it ideal for competitive racing environments. For this reason, it is a preferred choice for builds requiring precision and responsiveness.

Application & Benefits

Finally, this transmission is designed to support high-horsepower Ford applications and can be matched with compatible performance components for optimal results. Whether used on the strip or in a dedicated race build, it delivers the strength and consistency needed to perform under pressure. Ultimately, it offers a powerful combination of durability, control, and race-proven performance.
