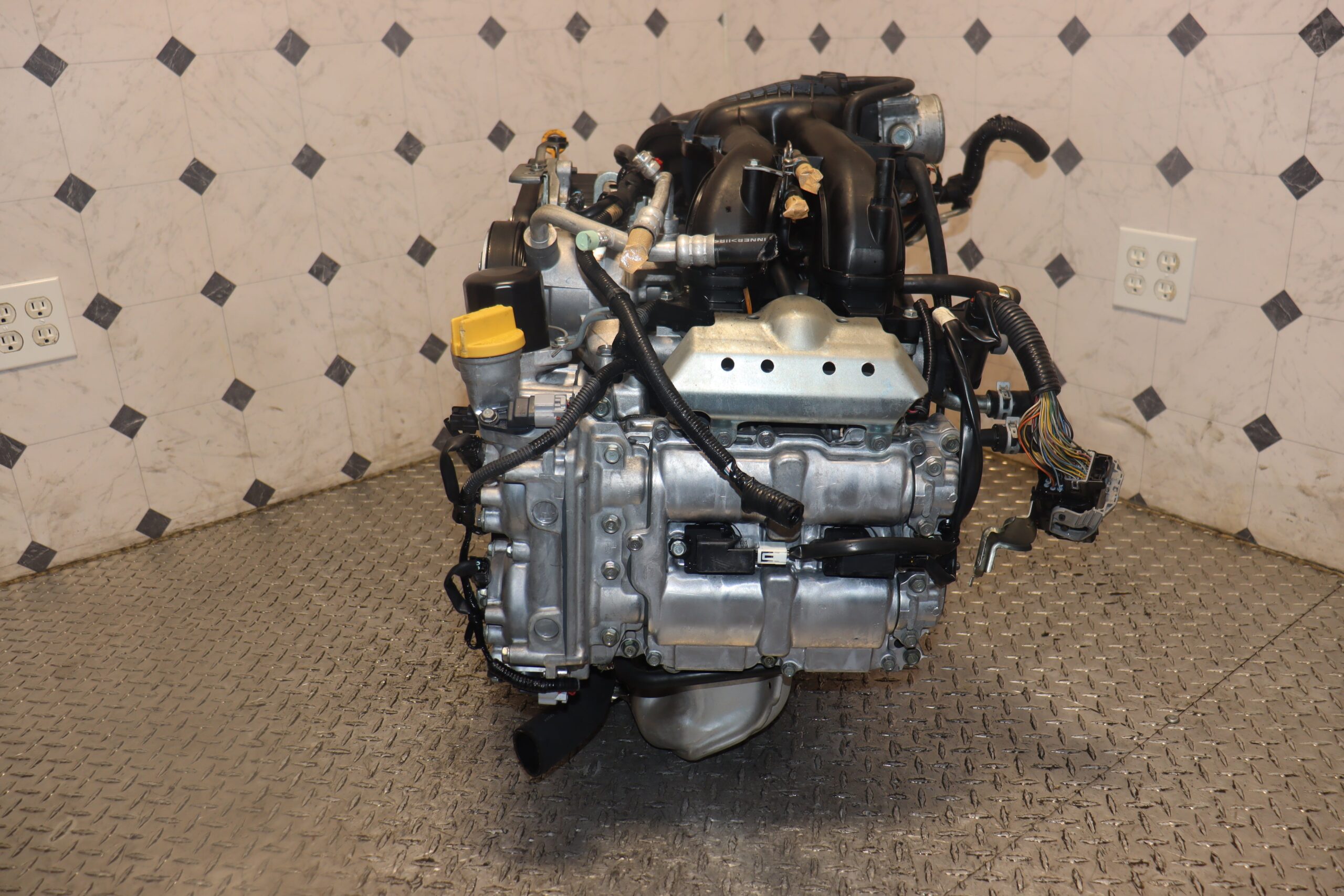

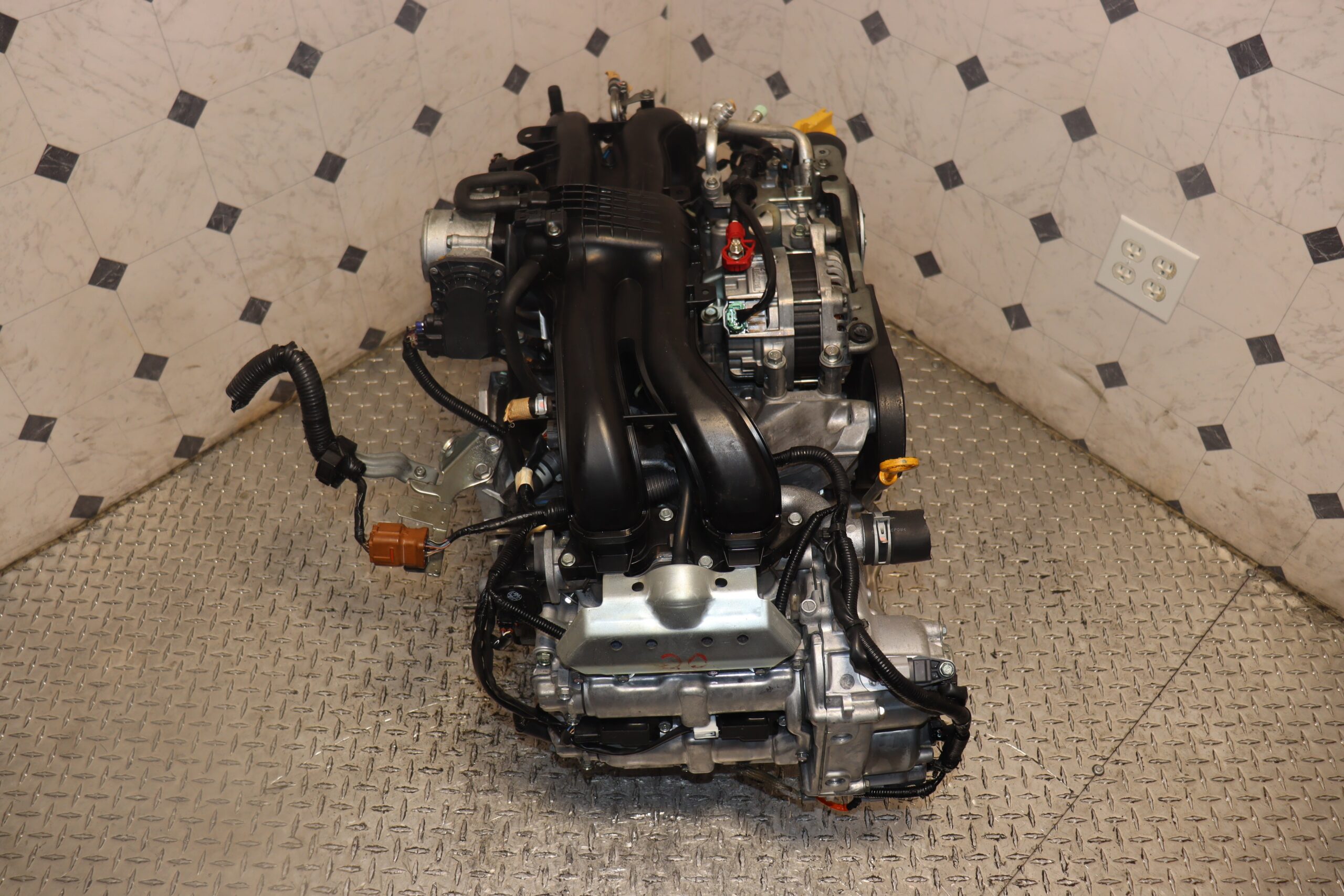

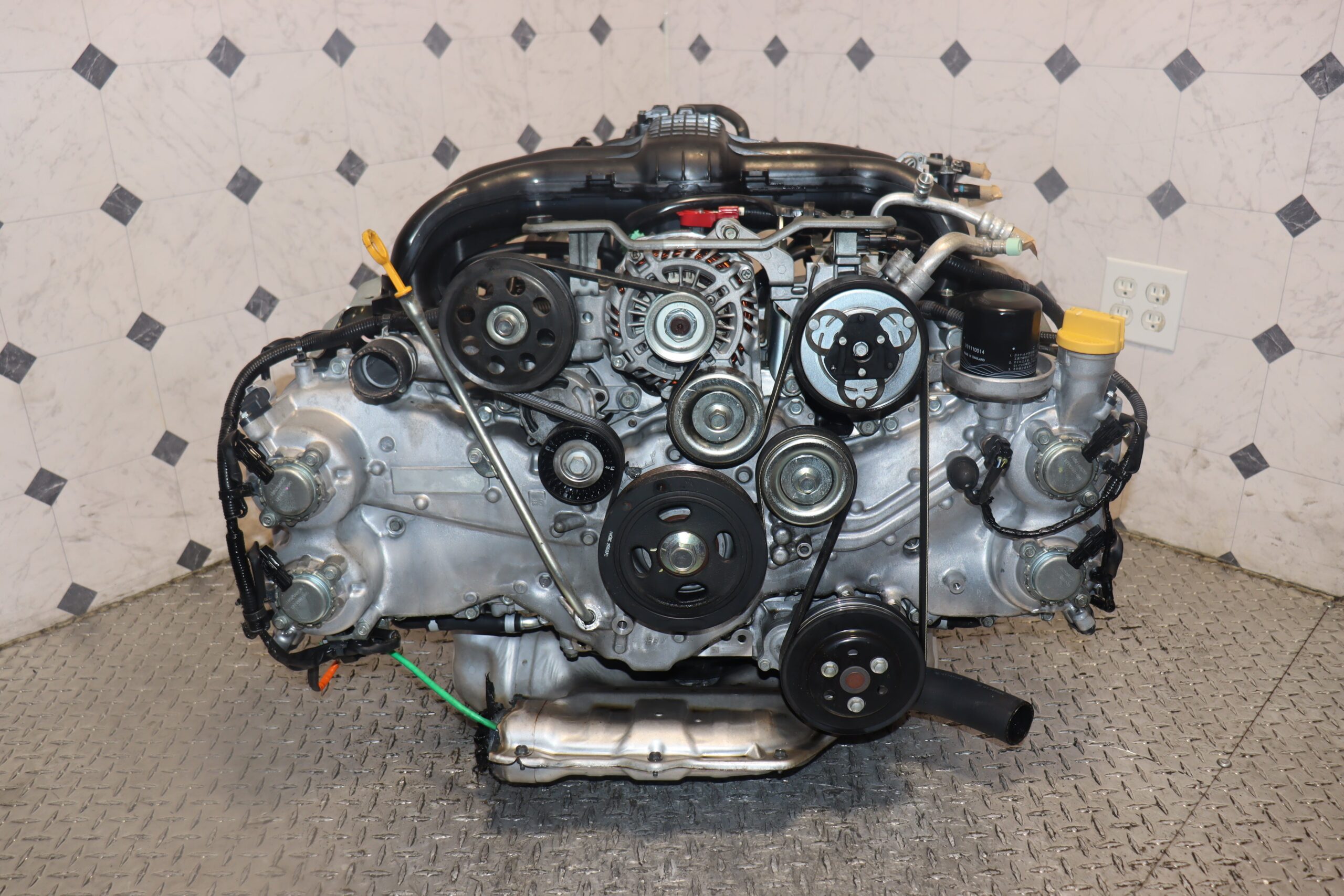

2012 2013 2014 2015 2016 Subaru Impreza 2.0L DOHC AVCS Engine JDM FB20 Timing Chain

Description

Vehicle Specifications

• Engine Code: FB20 (Non-Hybrid)

• Displacement: 2.0 Liter (1,995cc)

• Configuration: Horizontally Opposed (Boxer) 4-Cylinder

• Valvetrain: DOHC 16-Valve with Dual AVCS (Active Valve Control System)

Vehicle Fitments

• 2012–2016 Subaru Impreza (GP/GJ Chassis – Base, Premium, Limited, Sport)

Included Parts

• Complete Engine Long Block (Block and DOHC Heads)

• Timing Chain & Tensioners (Internal to the timing cover)

• Intake Manifold & Throttle Body

• Fuel Rails & Fuel Injectors

• Coil Packs & Spark Plugs

• Alternator, AC Compressor, & Power Steering Pump

• Water Pump & Thermostat Housing

Installation & Notes

• USDM Swap: To ensure 100% plug-and-play compatibility with your North American ECU and harness, you must transfer your original USDM wiring harness, all sensors (specifically Cam and Crank sensors), and the EGR system (if equipped) to the JDM unit.

• Cam Trigger Warning: Verify the cam trigger wheels (reluctor plates) and cam phasers match your original engine. In some cases, swapping the USDM cam triggers is necessary to prevent “Cam Position Sensor” codes and starting issues.

• Maintenance: We highly recommend installing a new Rear Main Seal and Front Crank Seal while the engine is out. It is also the ideal time to reseal the Cam Carriers and Timing Cover, as these are common leak points on the FB20 platform.

• Service: Use high-quality 0W-20 Full Synthetic Oil as specified by Subaru for the FB series to maintain proper AVCS operation.
